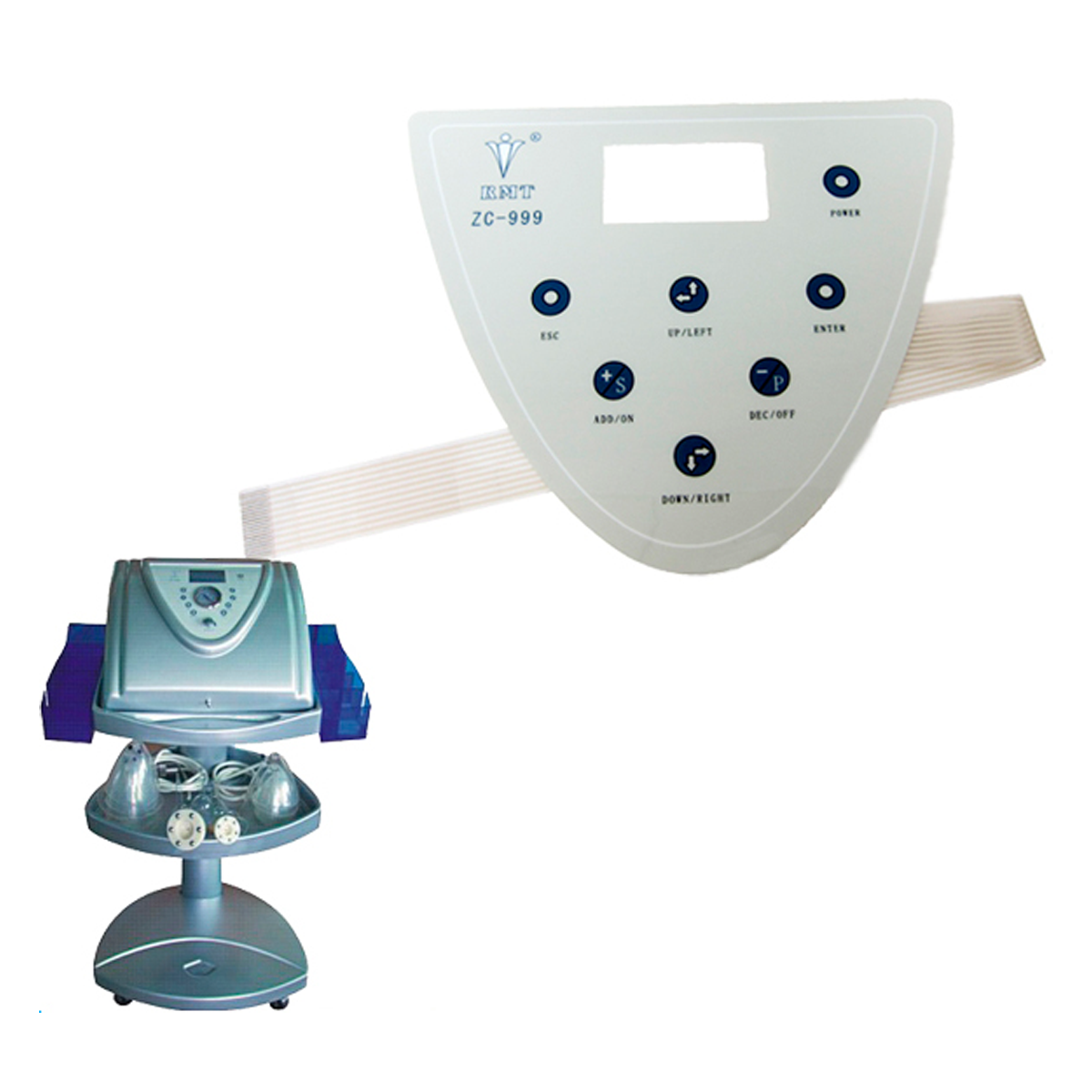

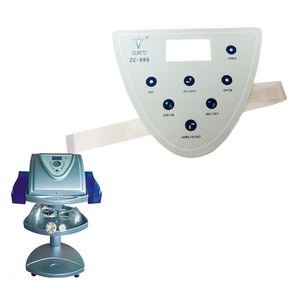

YouMi remote controlled switch panel AND automatic transfer switches
Membrane Switch/Membrane Keypad Capabilities:
YouMi remote controlled switch panel AND automatic transfer switches
| Item | Description | Technical capabilities |
| 1 | Max. Size: | 1100mm x 2000mm |
| PET: Autotype (Autotex F150,F200,F280, V150,V200,V280, | ||
| Autoflex EBG130, EBG180, EBG250,EBA130, EBA180, EBA250) | ||
| Autotex : XEV150, XEF200; | ||
| Autostat CT3,CT4,CT5,CT7 | ||
| 2 | Overlay Material: | DuPont, Toray PET etc. |
| Domestic Brand PET (Sichuan Dongfang) | ||
| PC: GE LEXAN--8010 8B35 8B35F HP92S HP40 FR700 FR60 | ||
| Bayer PC—Makrofol, /Bayfol, Marnot/ProTek | ||
| Domestic Brand PC etc. | ||
| 3 | Spacer: | 3M Adhesive, NITTO, TESA, SONY,SEKISUI, Domestic Adhesive |
| 4 | Back Adhesive: | 3M(Mainly), Others(Little) |
| CHANGSUNG: CSP-3163, CSP-3352,CSP-5150; | ||
| 5 | Silver Paste: | ACHESON:ED 725A(6S-61),ED 427SS,ED 479SS,ED 976SS HV; |
| FUJIKURA and OTTI | ||
| 6 | Oil Ink: | SEIKO, JUJO, DUBUIT, PROELL, NORCOTE UV |
| 7 | Carbon Paste: | FUJIKURA, ACHESON ED 581SS, OTTI |
| 8 | Typical 6 Layers Metaldome Type | Overlay + Spacer + Dome Retainer + Spacer + Circuit Layer+ Back |
| Membrane Switch Structure | adhesive | |
| 9 | Typical 4 Layers Polydome Type | Overlay + Spacer + Circuit + Back adhesive |
| Membrane Switch Structure | ||
| 10 | Contact Resistance | 0.5-10Ω |
| 11 | Insulation Resistance | ≥10MΩ (100VDC) |
| 12 | Base Material Voltage Durable | 2000V DC |
| 13 | Bounce Time | ≤5ms |
| 14 | Working Current | ≤100mA |
| 15 | Working Voltage | ≤50VDC |
| 16 | Life | ≥1,000,000 times |
| 17 | Key Travel | Flat type: 0.05mm-0.5mm, Tactile Type: 0.1-1.5mm |
| 18 | Working Temperature | -40℃-+80℃ |
| 19 | Actuation Force | 20-550g |
| 20 | Storage Condition | Temperature: -40℃~+85℃ ,Humidity: ≤98% RH |
| 21 | PET Circuit Tail Flexible Feature | 180°to any angle |
